The Importance of Waterproofing in Solar Installations — A Pinnacle Roofing Professionals Perspective

☀️ A Dual-Expertise Edge: Roofing & Solar You Can Depend On

At Pinnacle Roofing Professionals, we go beyond being just solar installers. We’re licensed electrical and roofing contractors with deep expertise in both fields—ensuring that solar installations never compromise roof integrity or void roof manufacturer warranties.

Asphalt Shingles: Why IronRidge FlashFoot 2 Delivers Peace of Mind

Many solar-only contractors rely on surface-mounted pucks sealed with butyl sealant. Fast-moving and lower-cost—but inherently flawed over time, sealants can degrade due to UV exposure and thermal cycling, increasing leak risk.

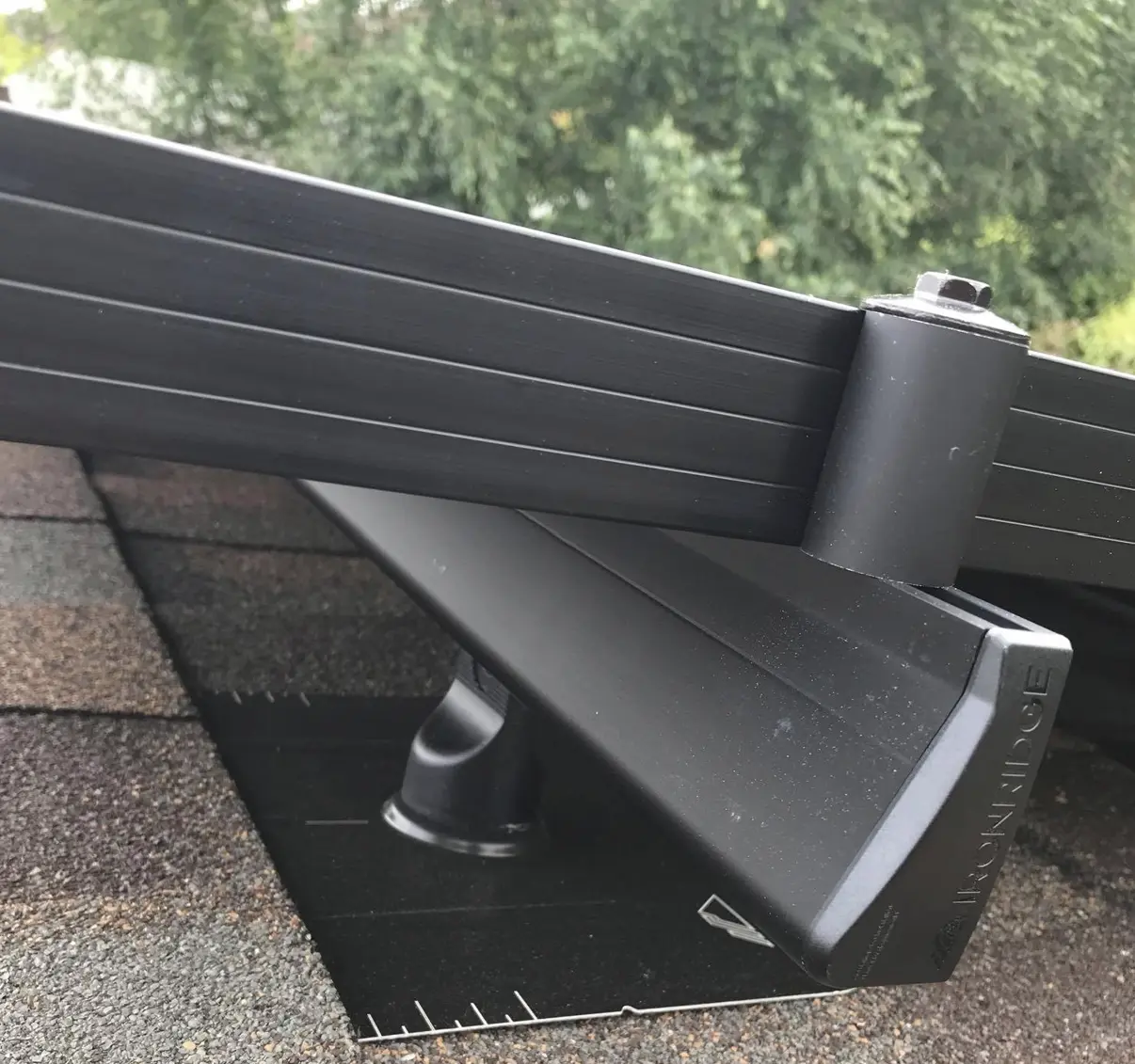

That’s why we exclusively use IronRidge FlashFoot 2 on asphalt shingle roofs:

• 🚀 Activated Forced-Twist Cap aligns the rail concentrically with the lag bolt, maximizing structural pull-out resistance.
• Three-tier elevated seal design physically lifts the seal above the roof surface, shedding water away from the penetration point, while encapsulating the lag bolt for redundancy.
• Independently tested under UL 441 (Rain Test) and TAS 100 (Wind-Driven Rain), FlashFoot 2 is certified for slopes from 2:12 to 12:12 with zero reliance on sealant.
• The system complies with UL 2703 bonding and mechanical standards—and comes with a 25-year IronRidge warranty.

We wrap each penetration with manufacturer-specified self‑adhered underlayment (e.g. ice‑and‑water shield), wrapped tight and integrated into the shingles per shingle manufacturer guidelines. This protects your roof warranty and ensures a watertight seal built to last.

Flat or Low-Slope Roofs: Why QuickMount Q‑Base + Hot-Air Welded Flashing Is Best Practice

For flat or low-slope roofs (e.g., TPO, or PVC), we prefer the QuickMount Q‑Base low‑slope system, paired with roof-manufacturer-approved cone flashings that are hot-air welded to the roofing membrane:

• Q‑Base offers a strong cast‑aluminum base with stainless hardware, is UL 2703 certified, and carries a 25‑year Q‑Base warranty. Its spun‑aluminum flashing is seamless and resilient—100% IBC, UBC, and NRCA compliant.
• The cone flashing is supplied by roof manufacturers and thermo‑welded (e.g. hot‑air welded) into the membrane substrate per manufacturer instructions, ensuring a unified waterproof system. The use of hot air welds is a common requirement to maintain membrane roof warranties.

Together, Q‑Base and thermally welded cone flashings create a robust, code-compliant attachment that preserves both manufacturer warranties and the long-term integrity of the roof system.

Why Your Choice of Contractor Matters

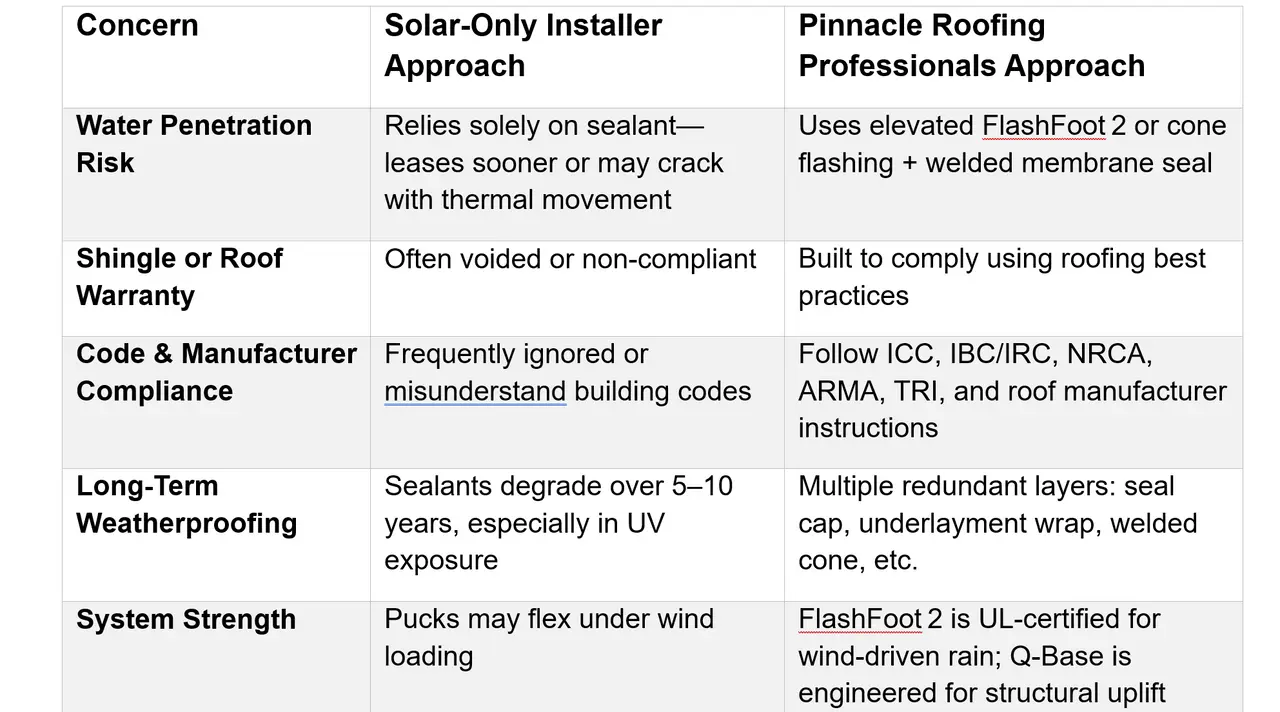

When it comes to a solar system, roof penetrations are inevitable—it’s how they’re treated that matters:

• Self‑adhered underlayment (e.g. ice‑and‑water shield wrapping the penetration) is nearly always required in modern shingle warranties. Failing to install it per manufacturer specs can void your roof warranty.
• A qualified contractor must understand and respect both shingle and membrane roof systems—not just solar mounting.
• Local inspectors in the PNW increasingly require visible compliance with codes and manufacturer flashing instructions before approving permits.

At Pinnacle Roofing Professionals, our work reflects our dual training, and our processes protect your home’s structural integrity and warranties.

Final Thoughts

Installing solar panels isn’t just plug-and-play—it’s a building envelope alteration. When done wrong, it can:

• Void roof warranties
• Lead to expensive leaks and repairs
• Undermine the energy savings you were counting on

But when done right—with proper flashing, professional roofing protocols, and third-party‑tested products like IronRidge FlashFoot 2 and QuickMount Q‑Base—it enhances your home’s value and durability.
