Bellevue (Enatai) IB PVC Roof with Tesla Solar & Powerwall Storage

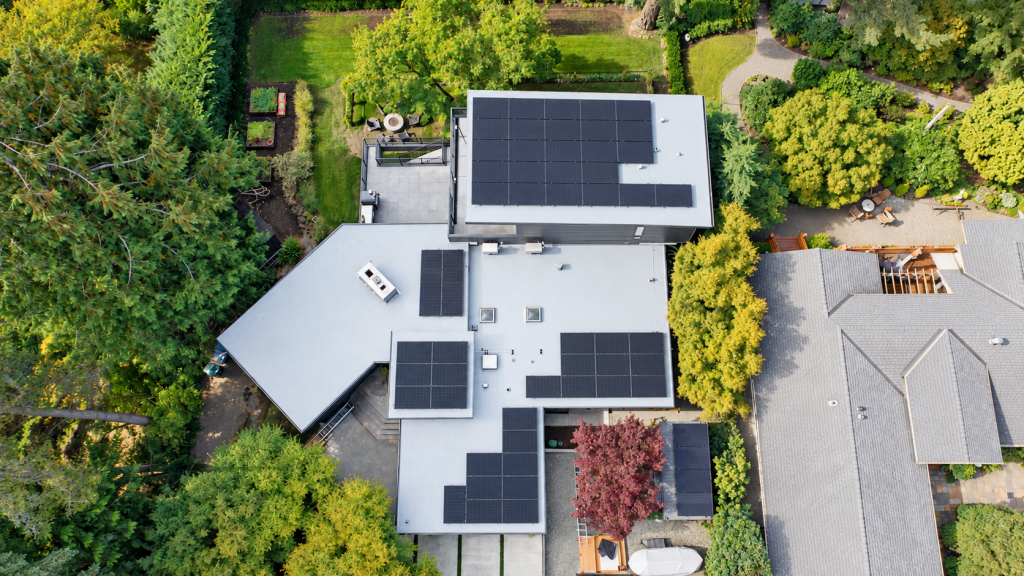

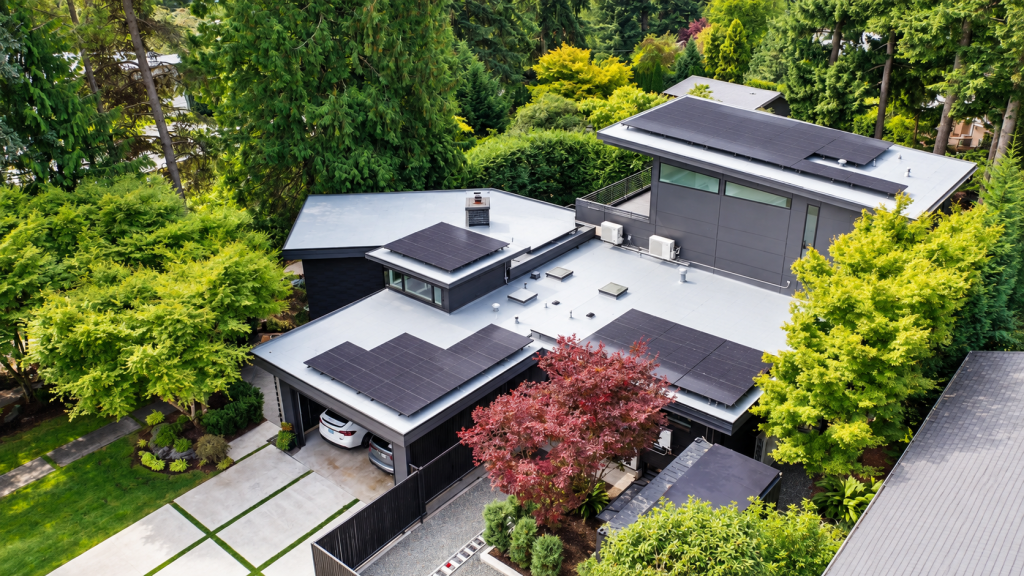

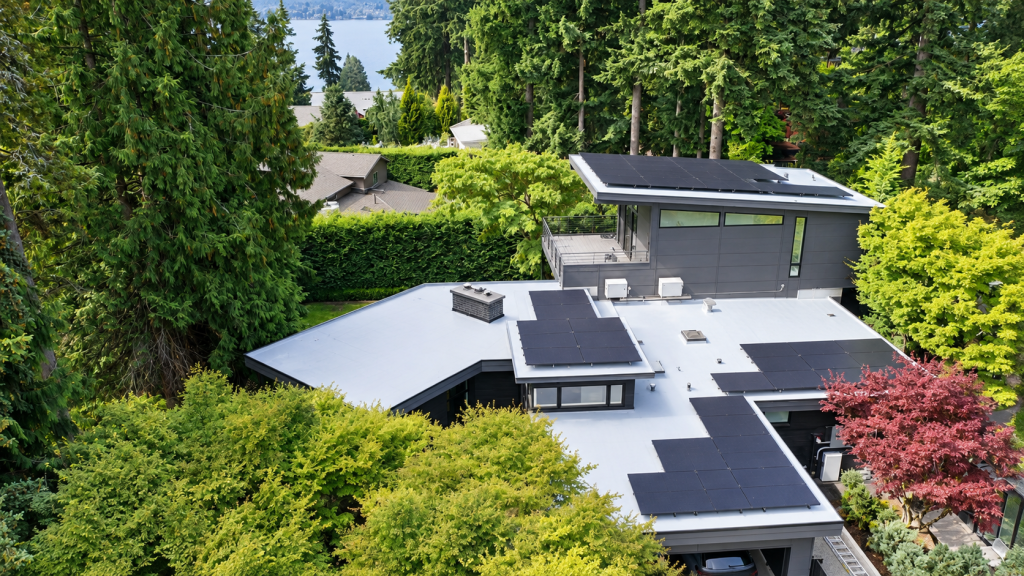

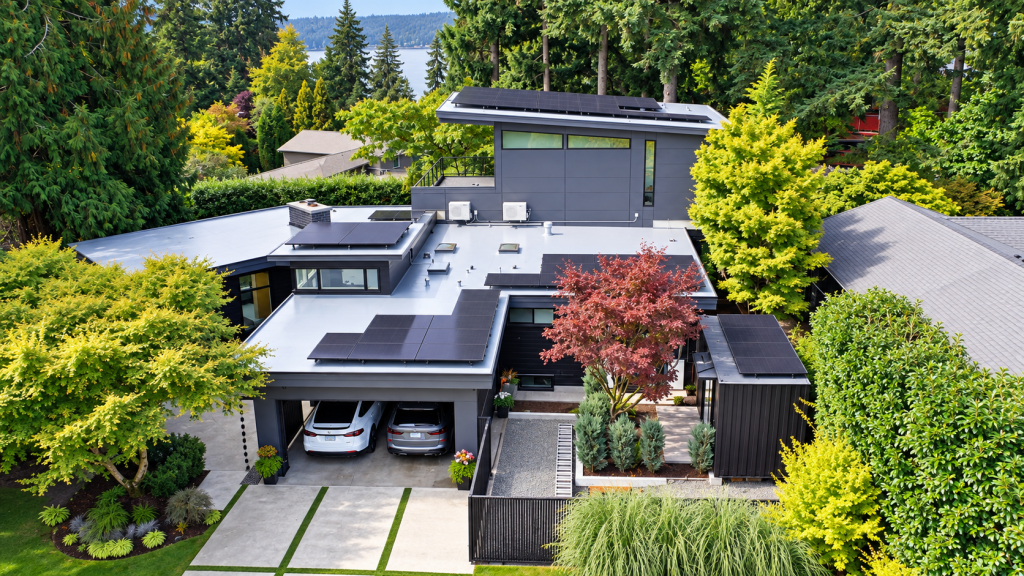

Pinnacle Roofing Professionals, LLC recently completed this combined roof replacement and energy upgrade in Bellevue, Washington, near the Enatai neighborhood — pairing a new 80-mil gray IB Roof Systems PVC membrane roof with a 24.36 kW Tesla solar array, SPAN smart electrical panels, and interconnection to the home’s existing Tesla Powerwall 3 battery storage. One contractor handled the roof, the solar, and the electrical integration — and one warranty covers it all.

Project Overview

Location: Bellevue, Washington (near the Enatai neighborhood)

Roofing System: 80-mil gray PVC membrane by IB Roof Systems

Insulation/Slope: Tapered poly-iso insulation at 1/4-inch-per-foot slope

Carpentry: New cedar fascia around the perimeter

Chimney: Chimney rebuilt from the roof line up

Solar Modules: 58 × Tesla 420W modules

System Size: 24.36 kW

Solar Attachment: QuickMount standoffs with IB short A-cone PVC flashing details (no screw-and-glue pucks)

Electrical: (2) SPAN smart panels

Energy Storage: Interconnected to 2 existing Tesla Powerwall 3s on site

Project Type: Residential flat/low-slope roof replacement with solar installation and energy storage integration

Contractor: Pinnacle Roofing Professionals, LLC

The Roof: 80-Mil IB PVC Membrane with Tapered Insulation

For this Bellevue home, our crews installed a new 80-mil gray PVC membrane roof system from IB Roof Systems — a heavy-duty single-ply membrane well suited to the low-slope roof planes common on mid-century and contemporary homes in the Enatai area. Beneath the membrane, tapered poly-iso insulation was installed at a 1/4-inch-per-foot slope, building positive drainage into the roof assembly so water moves to drains and edges instead of ponding.

The project also included finish carpentry and masonry work that flat roofs demand: new cedar fascia around the entire perimeter for a clean, durable edge detail, and a chimney rebuilt from the roof line up so the new membrane could be flashed to sound, properly sized masonry — not to a deteriorated stack.

Solar Done Right on a PVC Roof: 24.36 kW Tesla Array

On top of the new membrane, we installed 58 Tesla 420-watt modules for a total system size of 24.36 kW. Attachment matters as much as the panels themselves on a single-ply roof: the array is mounted on QuickMount standoffs finished with IB short A-cone PVC flashing details — heat-welded PVC flashings that become part of the membrane system, rather than screw-and-glue pucks that rely on sealant alone. The result is a solar attachment approach that keeps the roof’s waterproofing integrity and the warranty chain intact.

As a Tesla-focused roofing and electrical contractor, we design Tesla solar panel installations to work hand-in-hand with the roof systems beneath them — exactly what this Enatai project demonstrates.

Smart Electrical & Storage: SPAN Panels + Tesla Powerwall 3s

The electrical scope included two SPAN smart panels, giving the homeowners circuit-level visibility and control of their home’s energy use from an app. The new solar system was interconnected with two existing Tesla Powerwall 3 batteries already on site, tying production, storage, and home loads into one coordinated energy system.

One Contractor, One Warranty

Roof, solar, electrical, and storage — all designed and installed under Pinnacle Roofing Professionals. That means a single point of contact, systems engineered to work together, solar attachments that preserve the roof warranty, and no finger-pointing between trades if service is ever needed. One contractor, one warranty.

Bellevue Roofing, Solar, and Energy Storage Contractor

Pinnacle Roofing Professionals is a licensed roofing and electrical contractor serving Bellevue, Enatai, and communities across the greater Seattle and Puget Sound region. We specialize in flat and low-slope roofing (including IB Roof Systems PVC), solar installation, battery energy storage, smart electrical panels, and chimney services — all under one roof, one contractor, and one warranty.

Thinking about a combined roof-and-solar project for your Bellevue home? Call us at (206) 919-3538 or contact Pinnacle Roofing Professionals to schedule a free on-site evaluation.

Materials & systems

What went into this home.

  • IB Roof Systems 80-Mil PVC Membrane

    Heavy-duty 80-mil gray PVC single-ply membrane installed over tapered poly-iso insulation at a 1/4-inch-per-foot slope for positive drainage.

    Learn more
  • Tesla 420W Solar Panels

    58 Tesla 420-watt solar modules totaling a 24.36 kW solar array, mounted on QuickMount standoffs with heat-welded IB PVC flashing details.

    Learn more
  • QuickMount Standoffs with IB A-Cone PVC Flashings

    Solar attachment finished with IB short A-cone PVC flashings that heat-weld into the membrane system, preserving waterproofing and warranty integrity.

    Learn more
  • SPAN Smart Electrical Panels

    Two SPAN smart panels providing circuit-level visibility and app control of home energy use.

    Learn more
  • Tesla Powerwall 3

    Solar system interconnected with two existing Tesla Powerwall 3 batteries for coordinated production, storage, and backup power.

    Learn more
